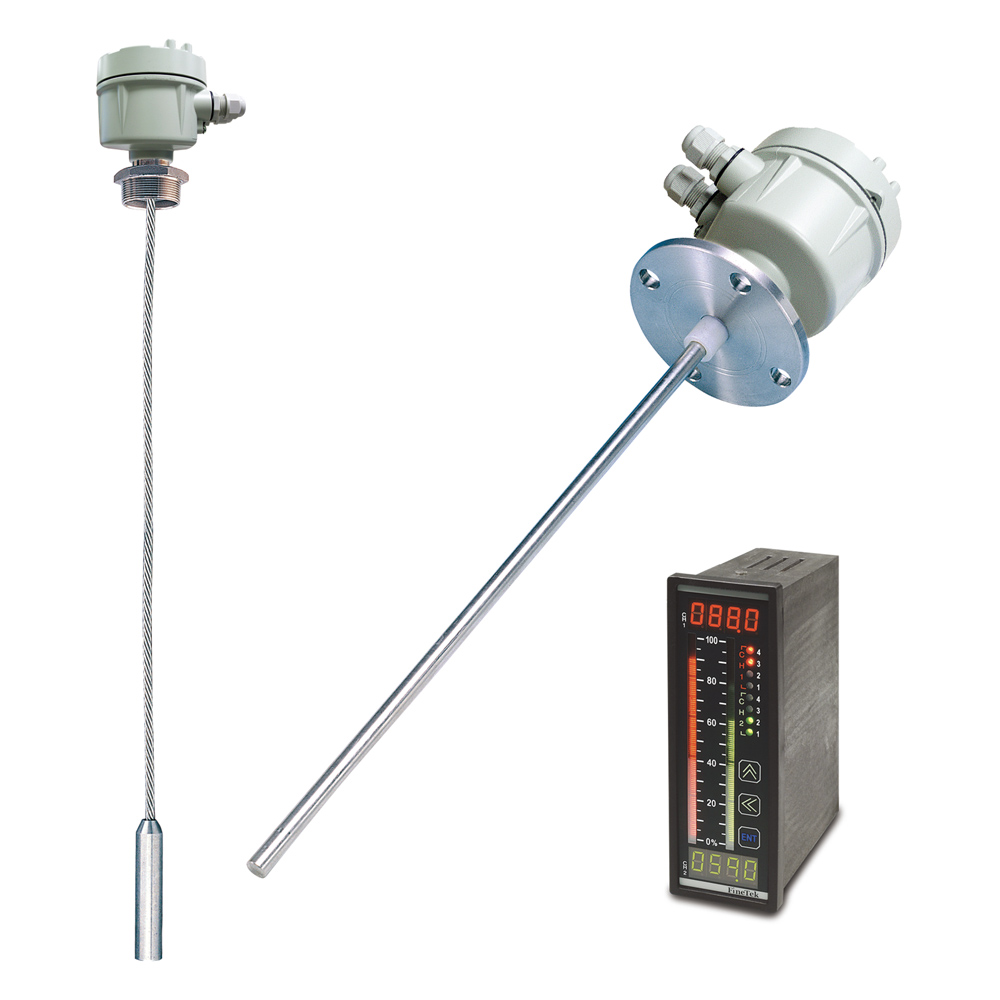

EBX RF-Admittance Level Transmitter

RF Admittance Level Transmitter utilizes the capacitance formed between the sensing probe and the reference probe or the metal vessel wall to calculate the level of the medium inside the vessel according to the capacitance theory that the capacitance and vessel are proportional increased. When the probe is surrounding by the air, little capacitance (C ) is measured by the equivalent A capacitor, the capacitance increase gradually as computing media, the max. capacitance (C ) will be B measured while the tank is full, the difference (dC) between C and C is proportional to the level. A B (Recommend range dC =25 ~2000 pF)

EBX RF-Admittance Level Transmitter_new_Catalogue

FEATURES

4~20mA 2 wire Loop power
Low consumption 1 of power (20mA Max)
High accuracy of linearity ( Temperature compensation, low temperature effect(A0.2% FS/BC or 0.1pF/BC)
Easy calibration (Any 2 points for calibration)
No blind distance, ideal for different tanks
Suitable for high temperature, high pressure and corrosive environment
LCD local display
